Precision Dry Cleaner
injection molding machine cleaner
injection molding machine cleaner
injection molding machine cleaner
injection molding machine cleaner
injection molding machine cleaner
injection molding machine cleaner
injection molding machine cleaner
injection molding machine cleaner
injection molding machine cleaner

* Design and specifications are subject to change without notice.

precision dry cleaner
precision dry cleaner
precision dry cleaner
precision dry cleaner
precision dry cleaner
precision dry cleaner
precision dry cleaner
precision dry cleaner
precision dry cleaner

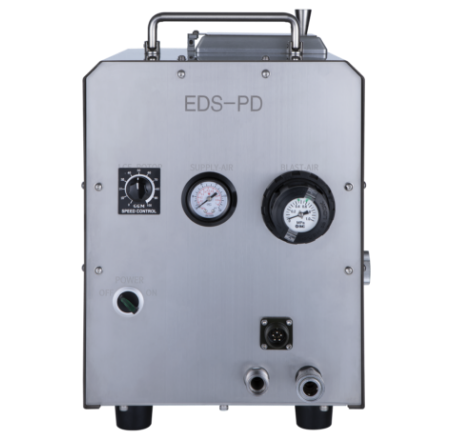

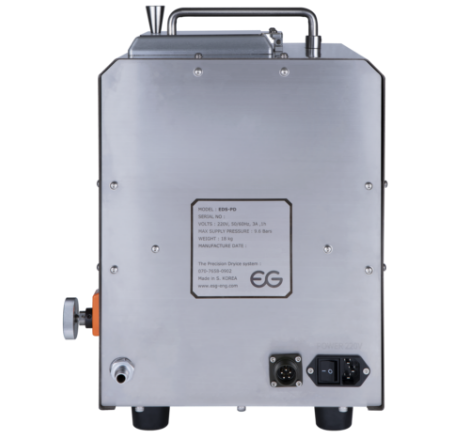

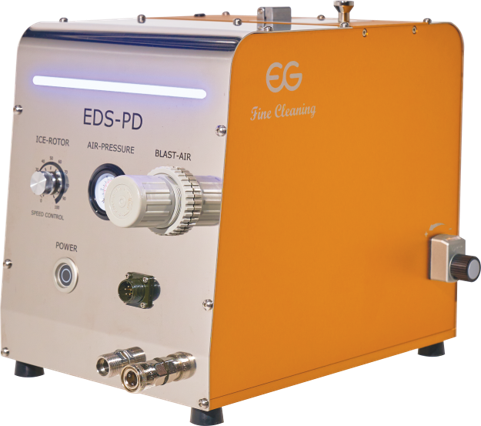

EDS-PD precision dry cleaner
Characteristics
  • Thoroughly cleans the object safely without causing any damage (fine-cleaning)
  • Performs not only precision cleaning but also powerful cleaning operations
  • Thoroughly cleans any gaps, holes, etc. through fine cleaning without breaking down/disassembling the object
  • Provides a one-stop cleaning solution without any pre- or post-treatment
  • Uses eco-friendly cleaning media to prevent secondary contamination and damage to the human body
  • Comes in a compact size and provides multi-purpose precision cleaning solutions with low noise (80DB)
  • International patented product
  • Applies to: Deburring, PCB flux removal, semiconductor cleaning, precision hole cleaning, film cleaning, product cleaning, coating pretreatment, liquid crystal cleaning, precision mold cleaning, automotive part cleaning, and other electrical and electronic applications
Advantages
  • Optimal
    design

  • User
    convenience

  • Excellent
    durability

  • Low noise

  • Adjustable
    cleaning power

  • Long
    service time

Detailed Specifications



  • Dimensions 350 x 300 x 400(L x W x H) (excluding the handle)
    Weight 23kg
    Hopper capacity   2kg
    Pellet Consumption 0-240 g/min (can be fine-tuned), 100 g/min on average
    Air Consumption 0.5m3

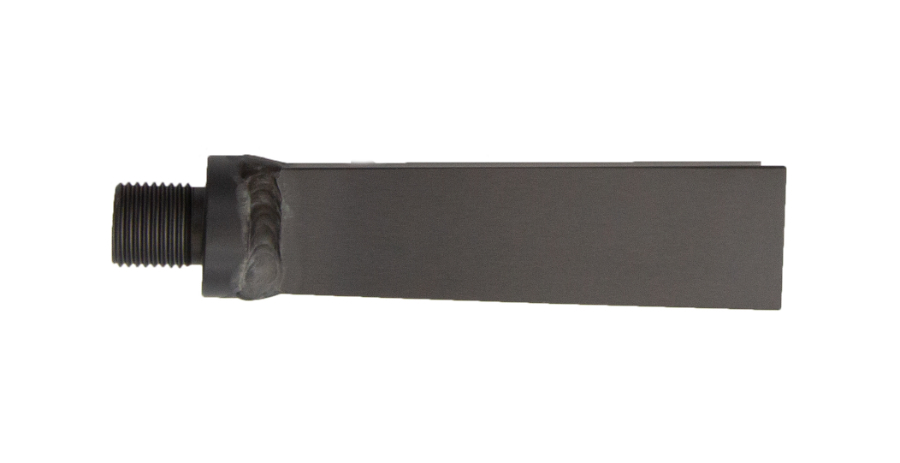

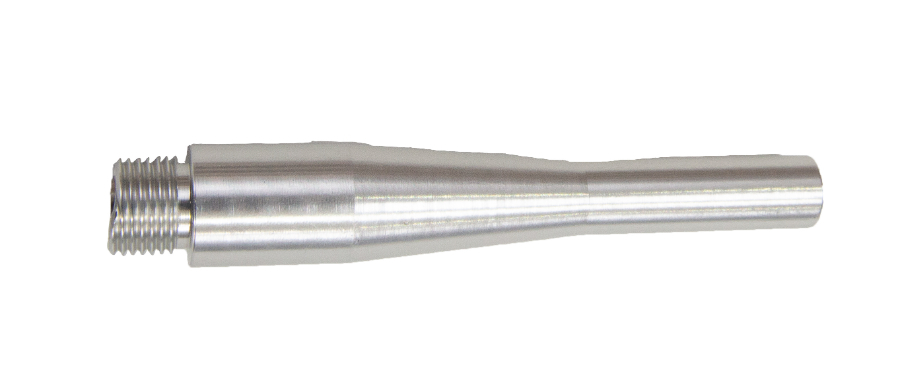

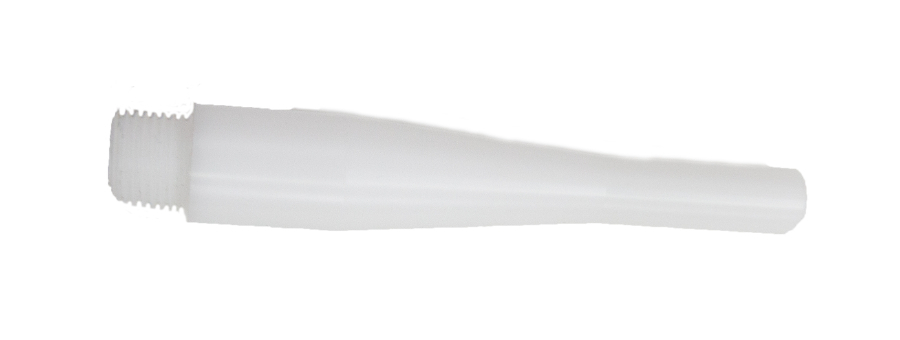

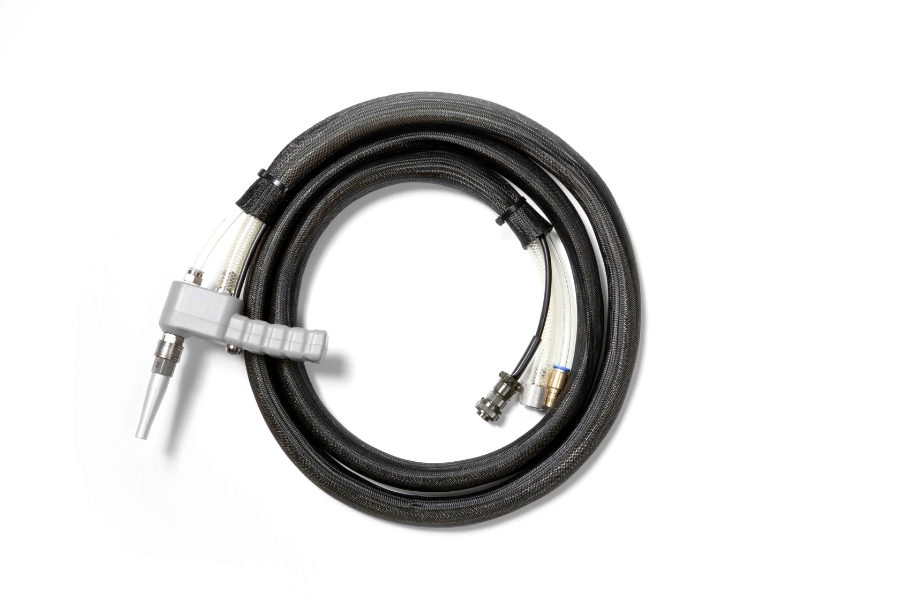

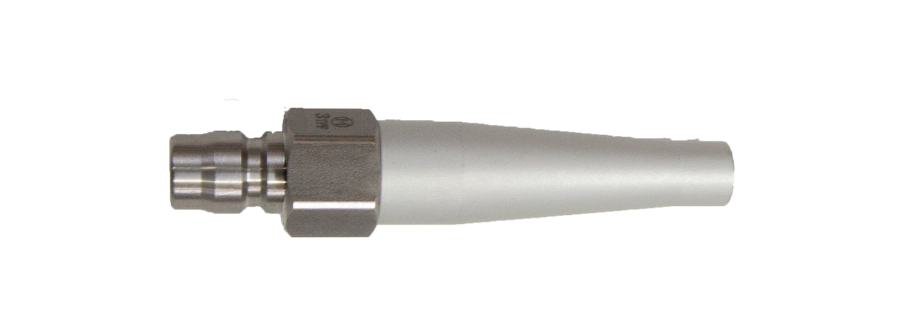

    Accessories nozzle 8, nozzle 10, nozzle 18, nozzle 8p, blasting hoses/guns/nozzles
  • Applied Air Pressure 4~5bar (max 10bar)
    Mechanicsm MaterialSUS or AL
    Control Method mic control with a dedicated board
    Electrical Specification 220V, 2A
    Particle Size 0.05~2mm(adjustable in a non-stepped manner)

Applications
