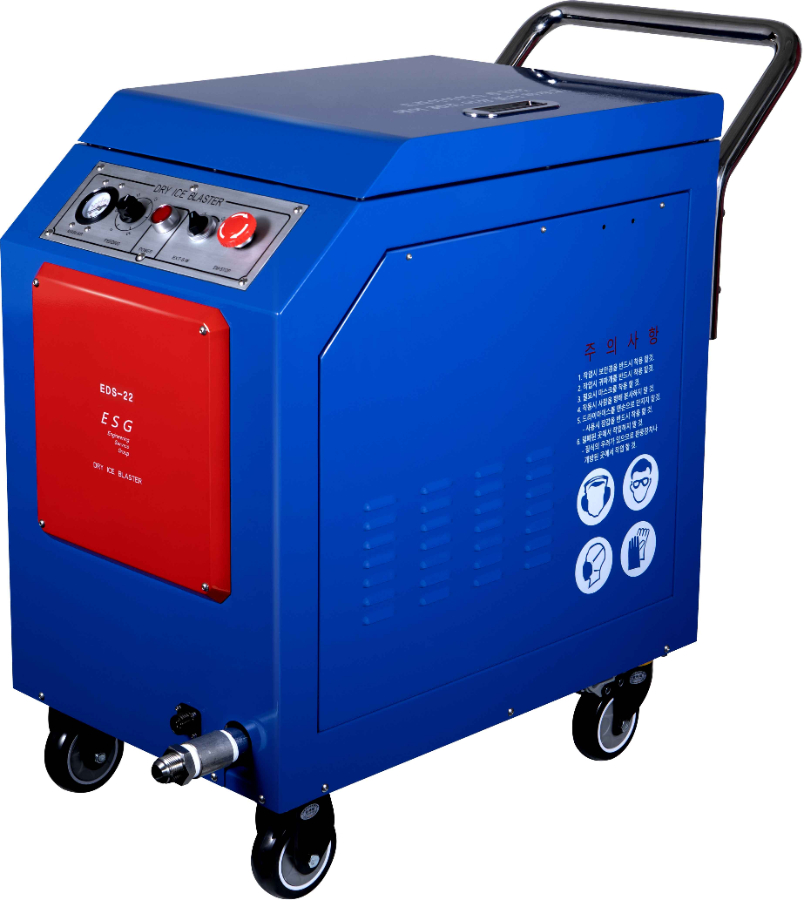

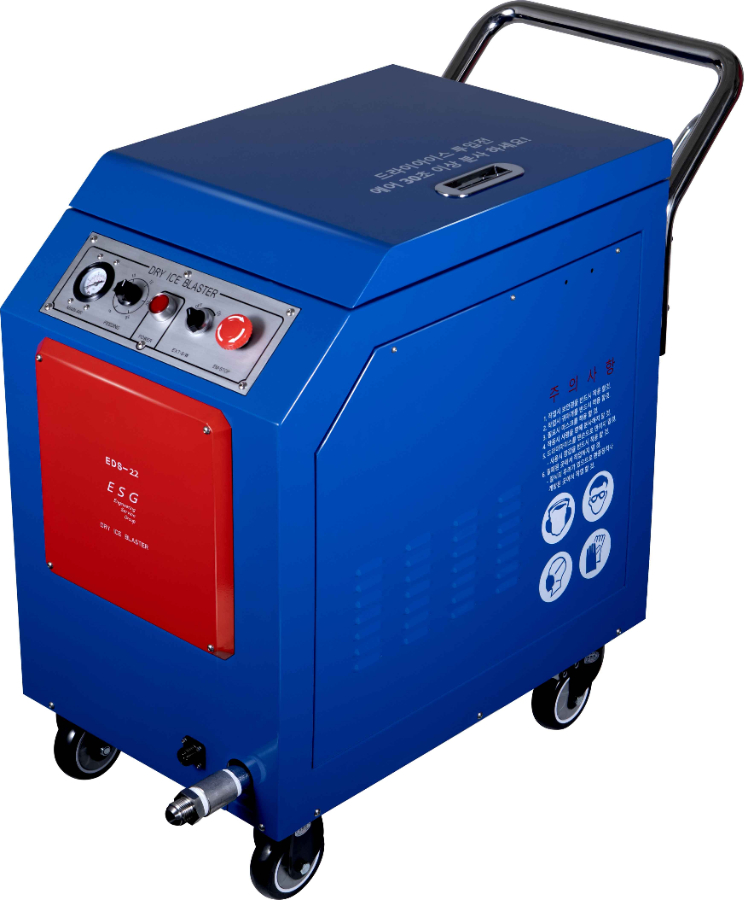

EDS-22 precision dry cleaner
Characteristics
  • Wired product
  • Applies to any objects in all different field
  • Easy to use in narrow spaces
  • Provides powerful cleaning power
  • Controls the vibrator in a smart way
  • Capable of moisture separation (for internal operation)
  • Optimizes the consumption of a consumable item (dry ice) with an average consumption rate of 0.5 kg/min
  • Equipped with a spray structure that optimizes dry ice consumption
  • Exhibits no fluctuation (continuous spraying with a uniform density)
  • Comes with a built-in toolbox
  • Patented product
  • Applies to: Injection molds, press molds, casting molds, molds for rubber products, forging molds, casting molds, facility cleaning, cleaning for car maintenance, and the cleaning of various other machinery
  • Certification: International patent, CE certification, ISO certification
Advantages

  • Optimal
    design

  • User
    convenience

  • Excellent
    durability

  • Low noise

  • Adjustable
    cleaning power

  • Long
    service time

Detailed Specifications



  • Dimensions 670 x 450 x 800 (L x W x H) (excluding the handle)
    Pellet Storage Capacity 20kg
    Air Consumption 1~3㎡ / min
    Control Method a dedicated board (Storage the cleaning conditions)
    Electrical Specification 220V(AC), single-phase / inverter speed control

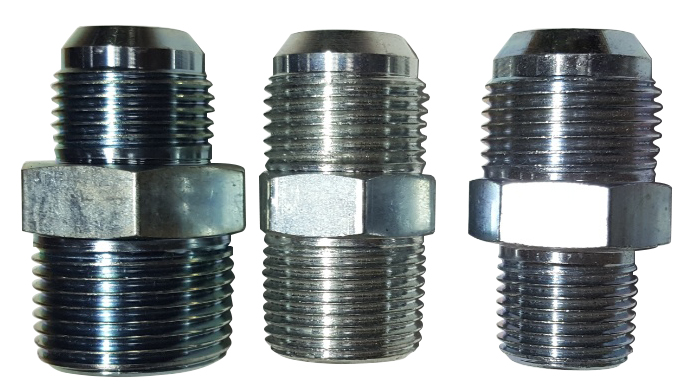

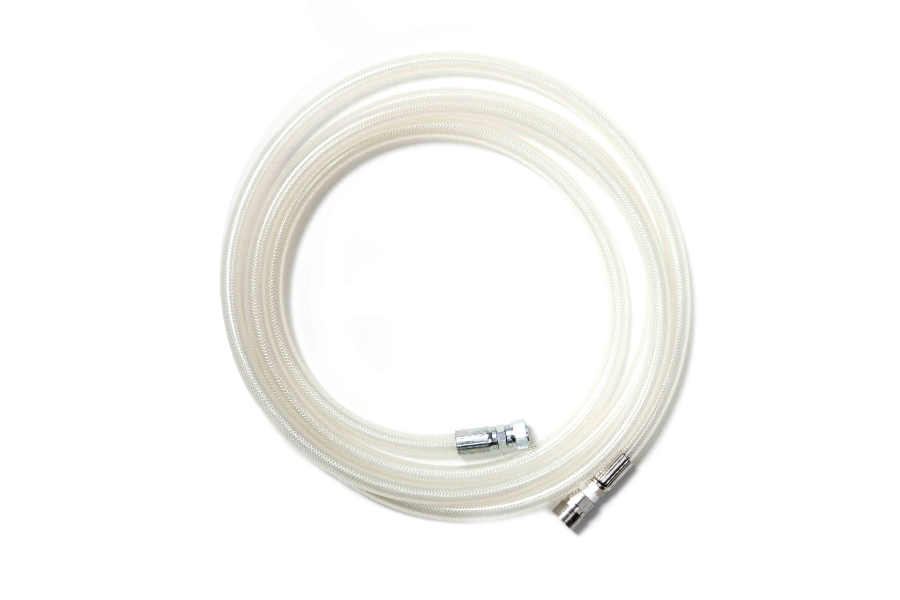

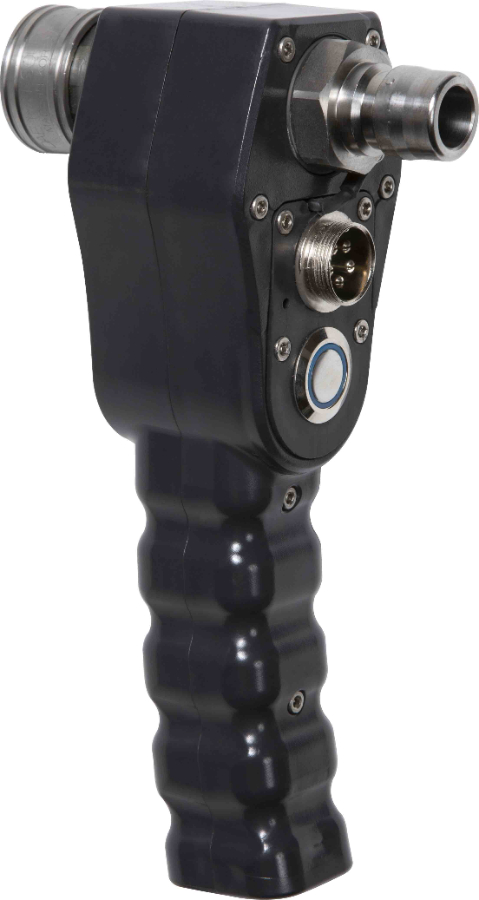

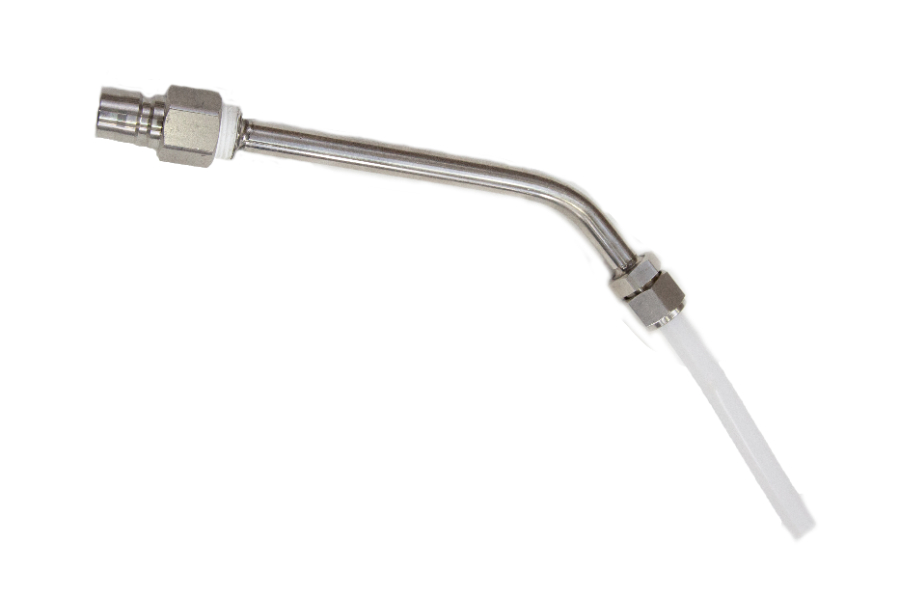

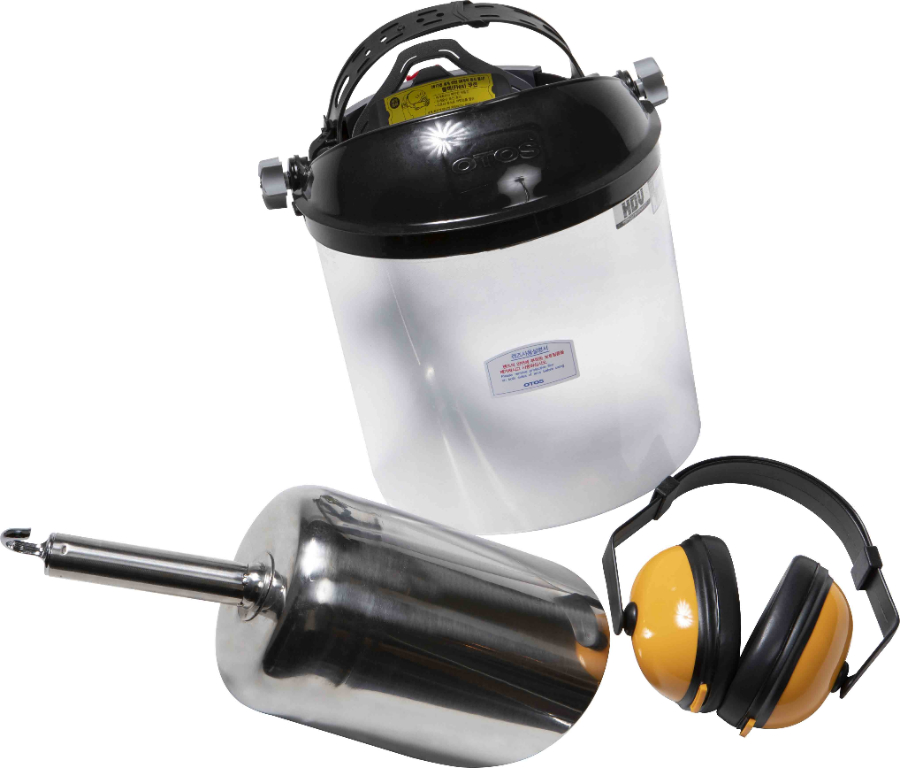

    Accessories nozzle 30, nozzle 45, nipples, spray guns, extension nozzles, blasting hoses/guns/nozzles, safety protection gear, air hoses
  • Weight 70kg
    Pellet Consumption 0 ~ 2kg/min (can be fine-tuned)
    Applied Air Pressure Max 10 bar (for high pressure use 20 bar, on-demand customized production)
    Control Power Specifications single-phase 220V (60Hz, 50Hz), 2A
    Power Code 1.5S,3P, 10m (built-in power code)
