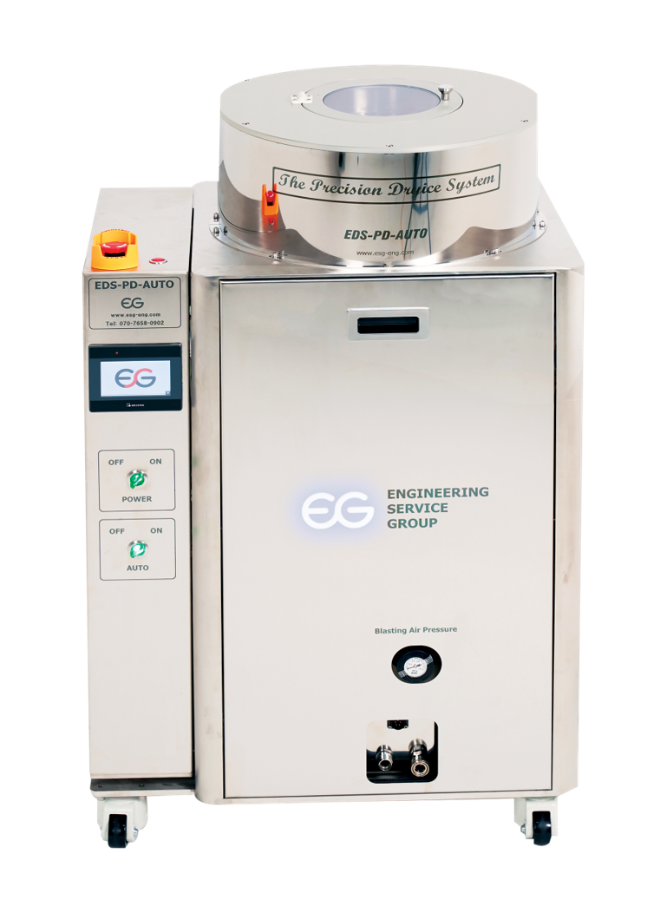

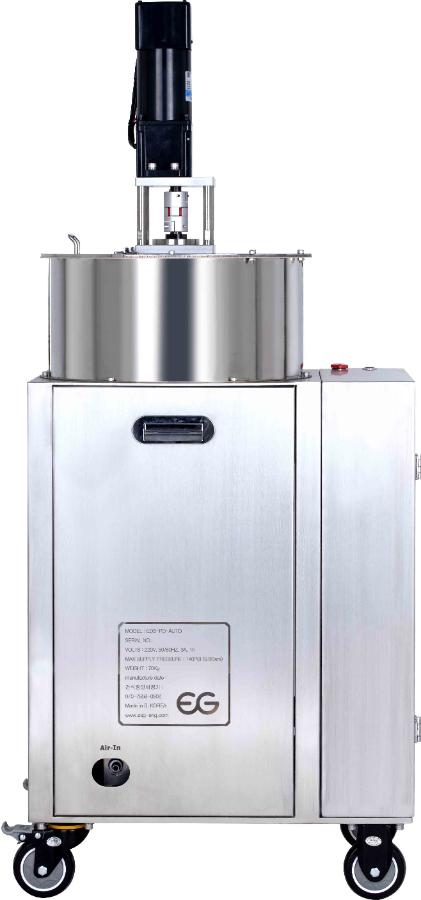

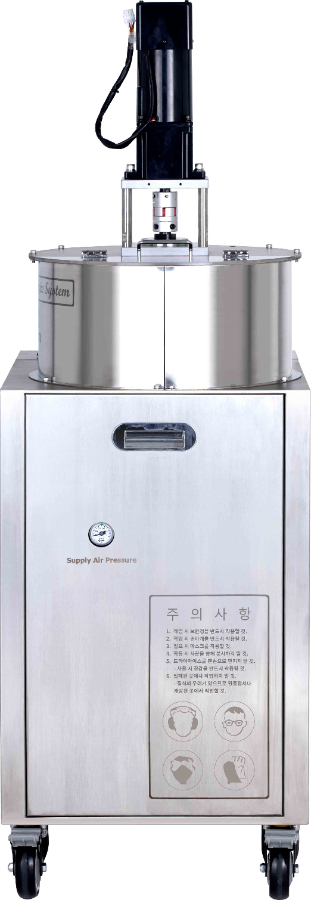

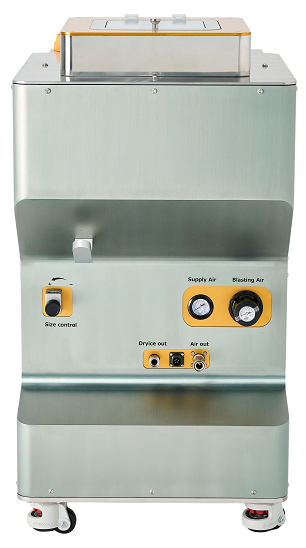

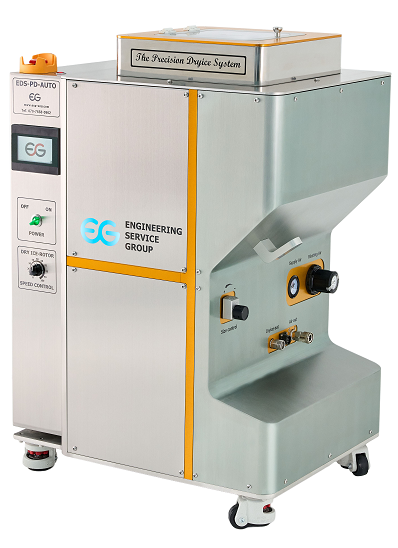

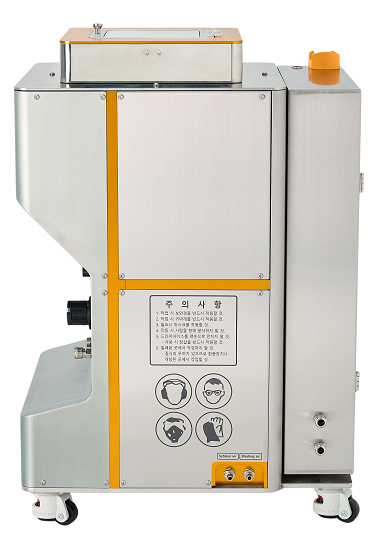

EDS-AUTO precision dry cleaner
Characteristics
  • Cleans the object safely without causing any damage (fine-cleaning)
  • Performs not only precision cleaning but also powerful cleaning operations
  • Cleans gaps, holes, etc. through fine cleaning without breaking down/disassembling the object
  • Provides a one-stop cleaning solution without any pre- or post-treatment
  • Uses eco-friendly cleaning media to prevent any secondary contamination and damage to the human body
  • Provides an input and output contact function (I&O)
  • Converts cleaning conditions, pellet feed settings, and other required input conditions into the programs
  • Provides touch panel operation
  • Controls the pellet flow in a smart way while ensuring excellent durability
  • International patented product
  • Applies to: Precision cleaning automation, long-term continuous cleaning, PCB cleaning, deburring, and electrical and electronic applications
  • Certification: International patent, CE certification, ISO certification
Advantages



  • Optimal
    design

  • User
    convenience

  • Excellent
    durability

  • Low noise

  • Adjustable
    cleaning power

  • Long
    service time

Detailed Specifications



  • Dimensions 540 x 685 x 1140(L x W x H) (excluding the handle)
    Weight 110kg
    Hopper capacity   20kg
    Pellet Consumption 0-240 g/min (can be fine-tuned), 100 g/min on average
    Air Consumption 0.5m3

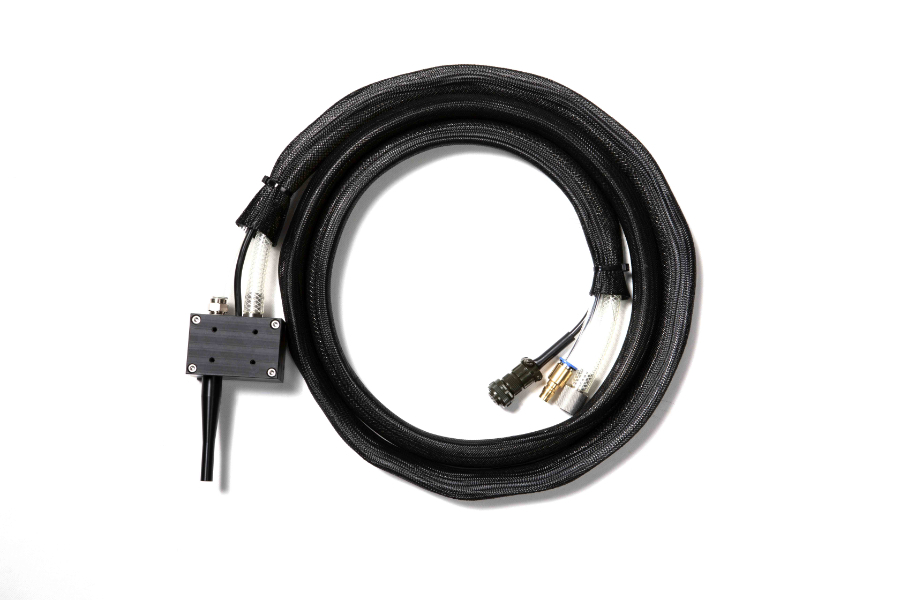

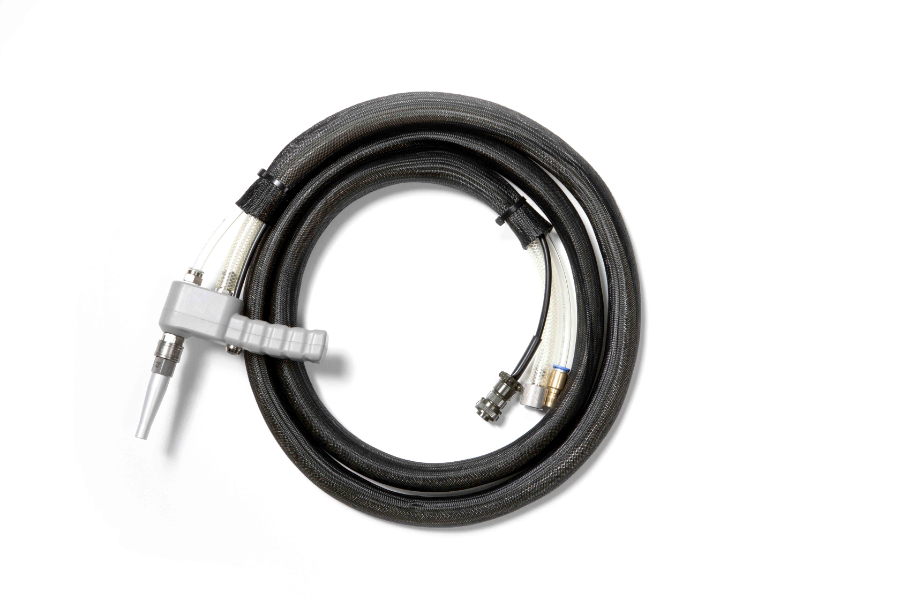

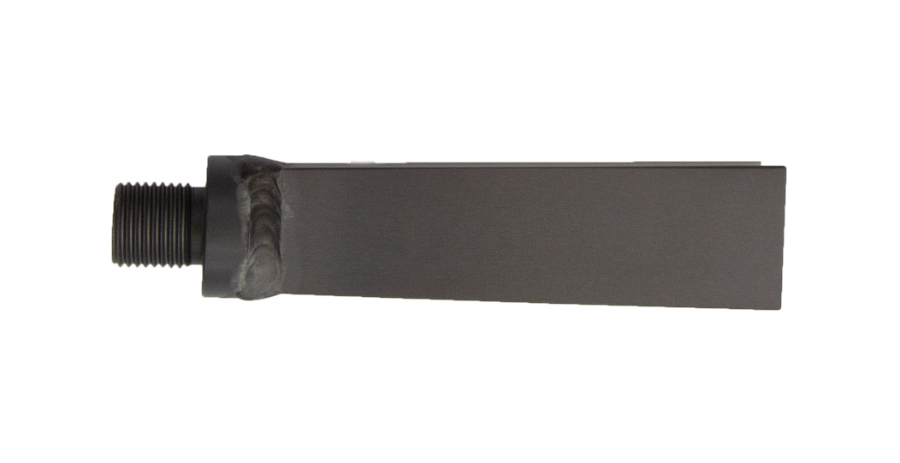

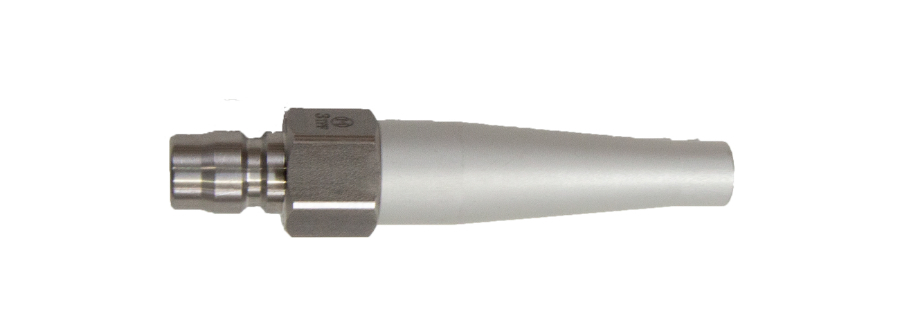

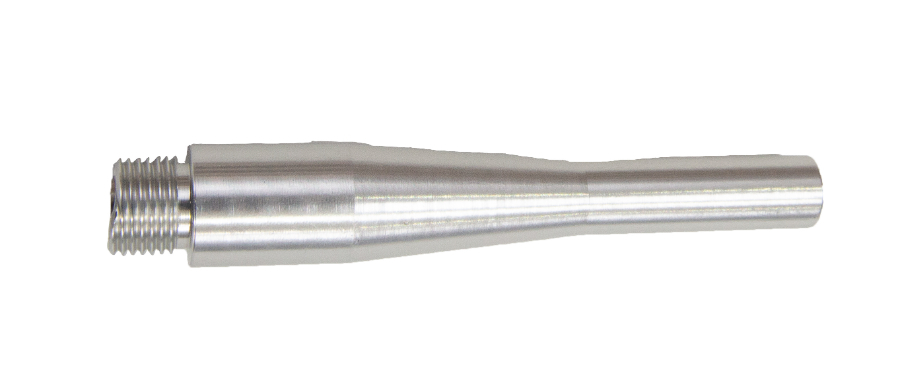

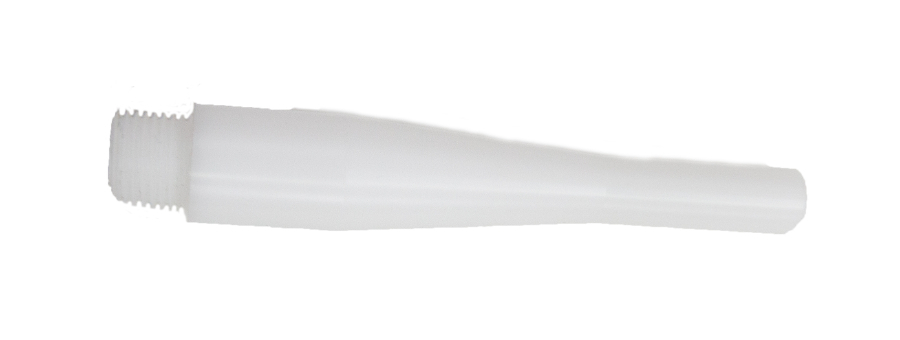

    Accessories nozzle 8, nozzle 10, nozzle 18, nozzle 8p, blasting hoses/guns/nozzles
  • Applied Air Pressure 4~5bar (max 10bar)
    Mechanicsm MaterialSUS or AL
    Control Method mic control with a dedicated board
    Electrical Specification 220V, 2A
    Particle Size 0.05~2mm(adjustable in a non-stepped manner)
